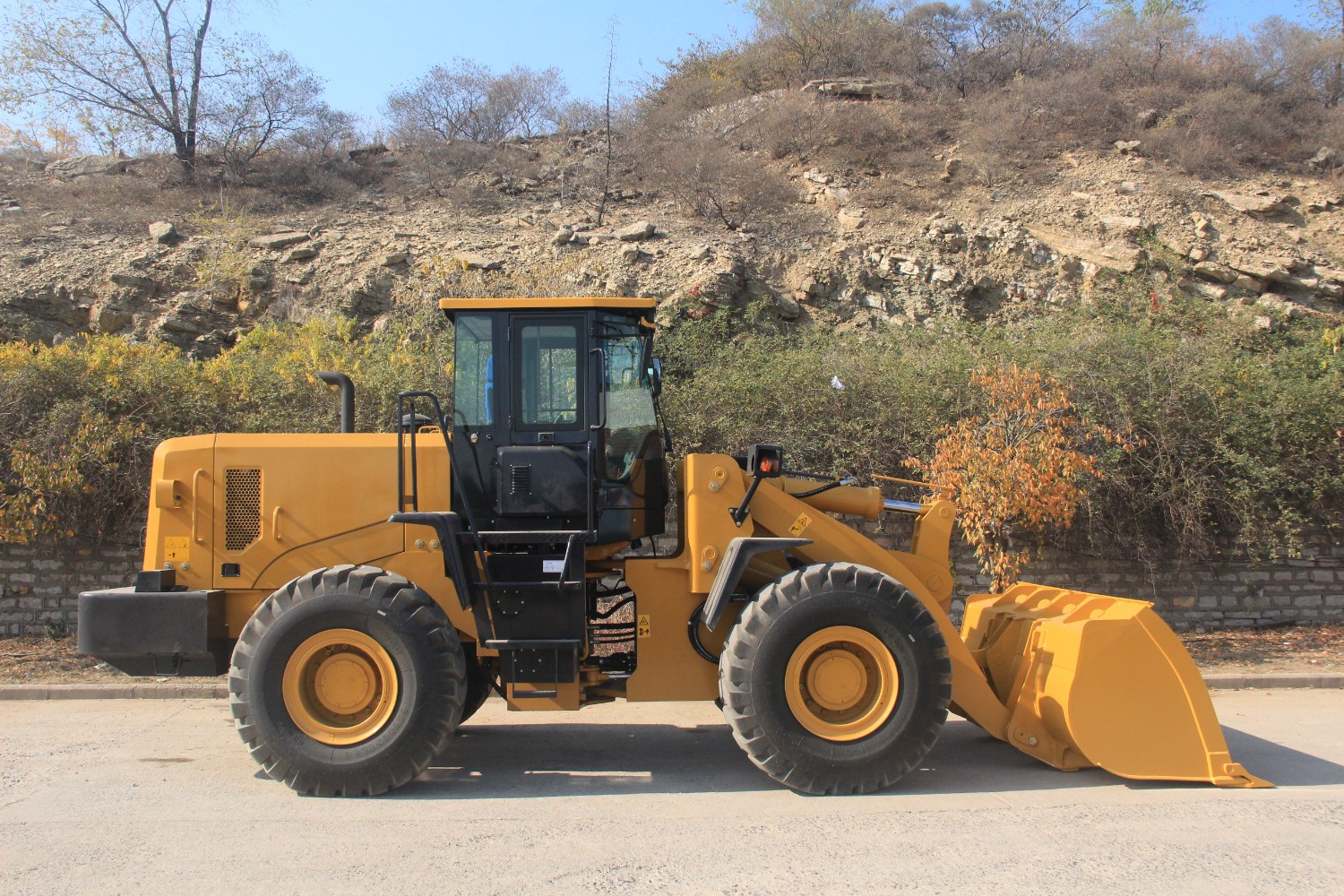

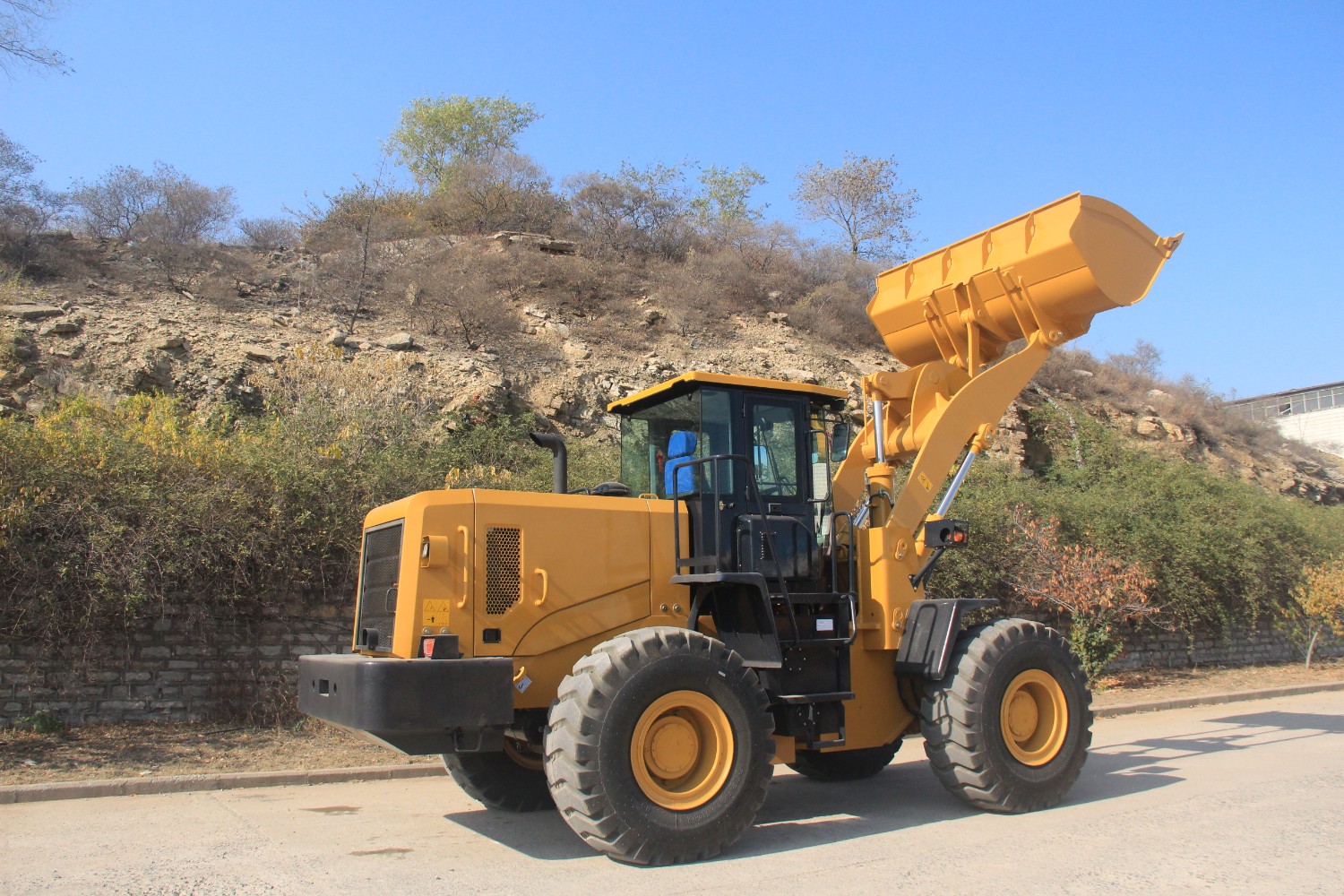

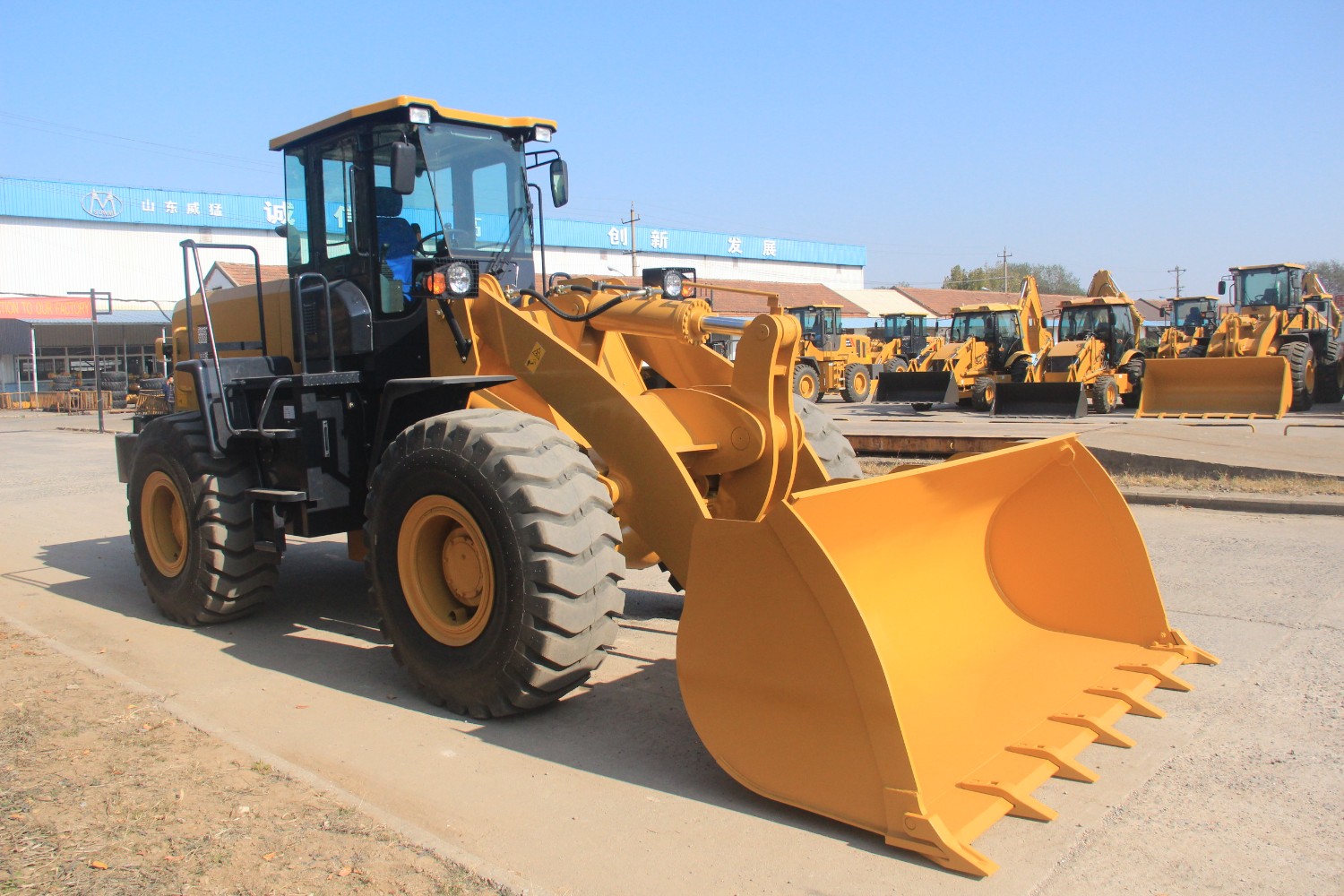

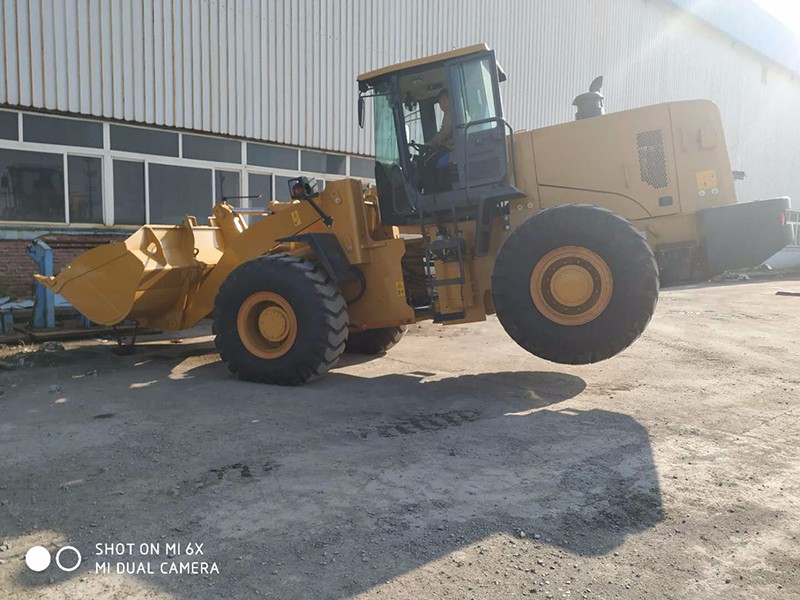

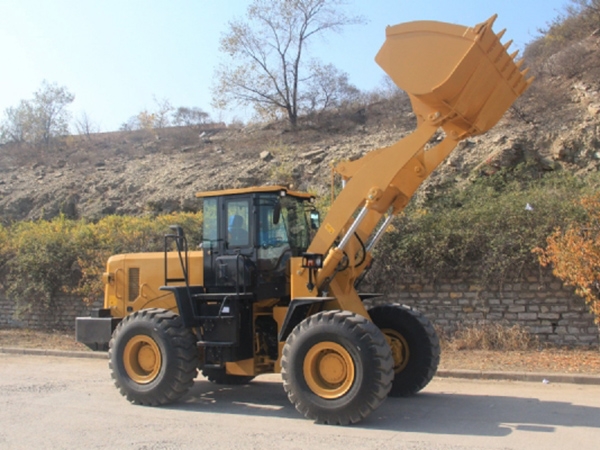

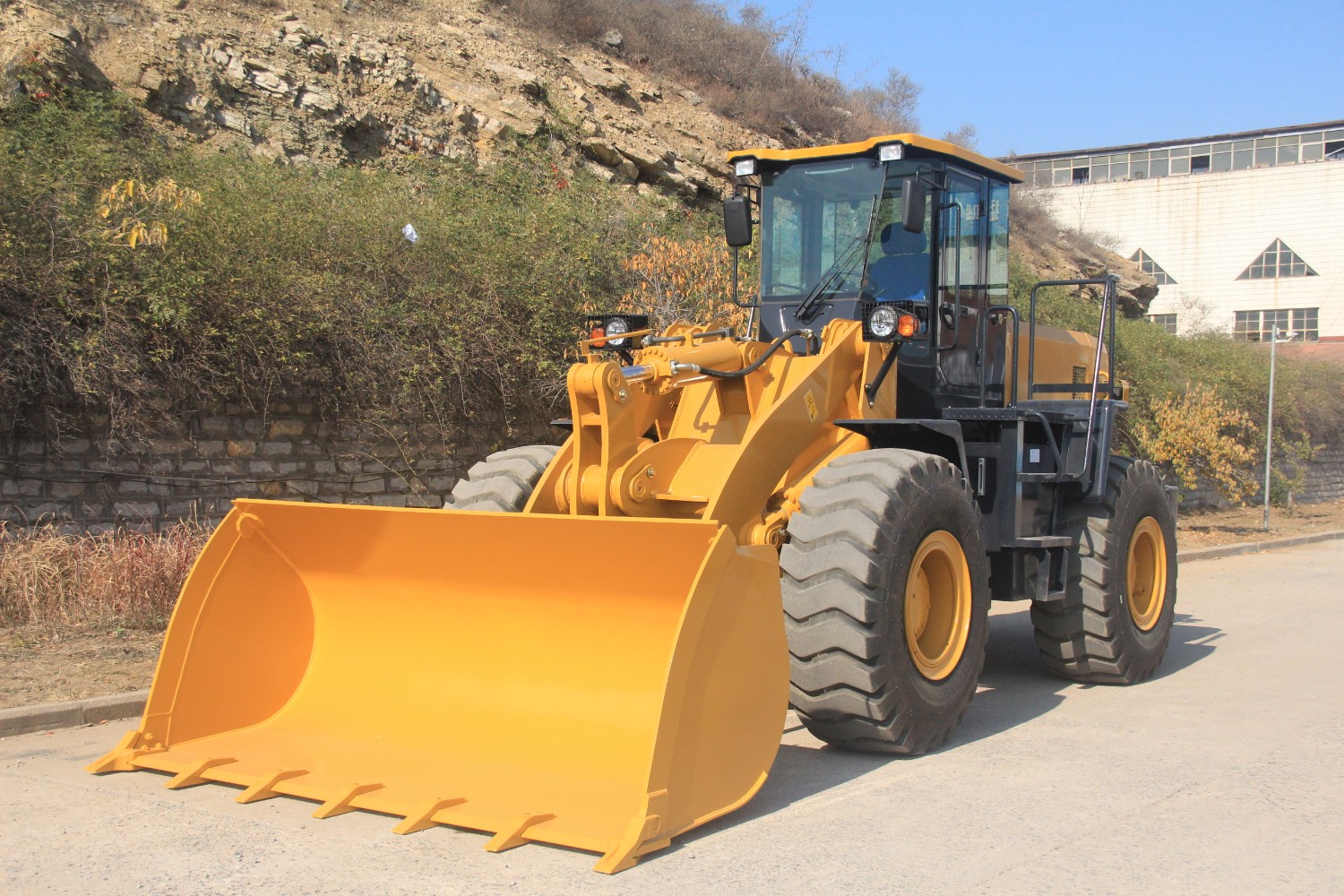

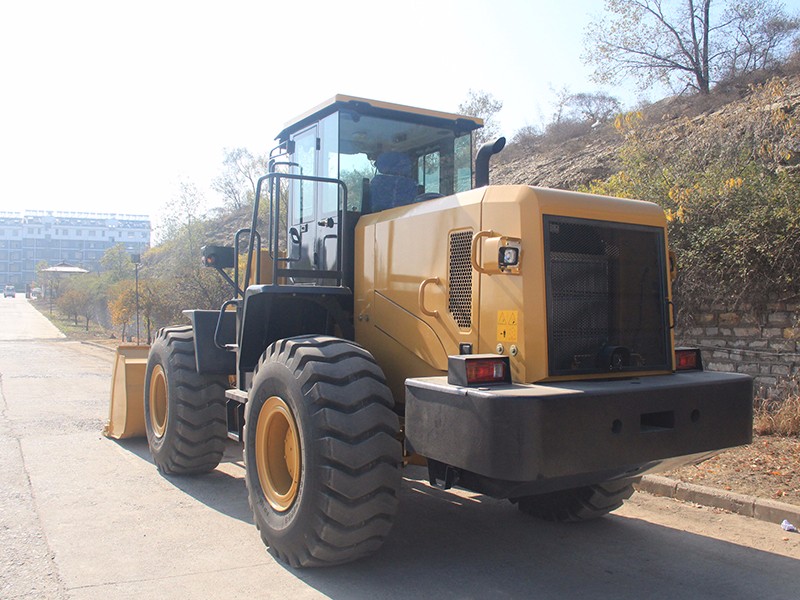

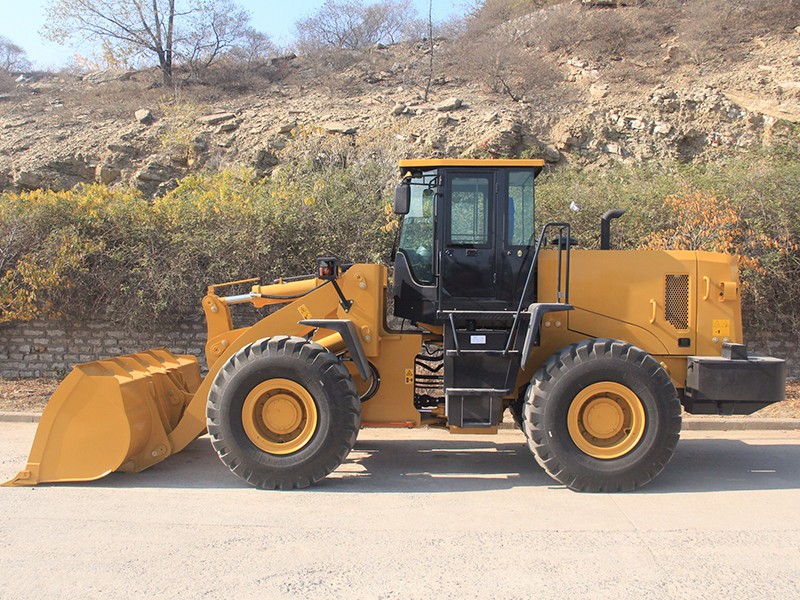

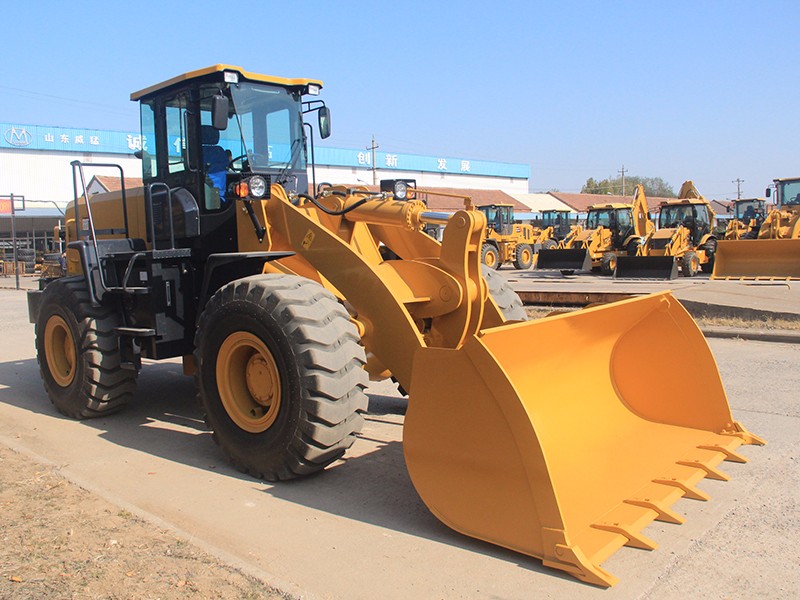

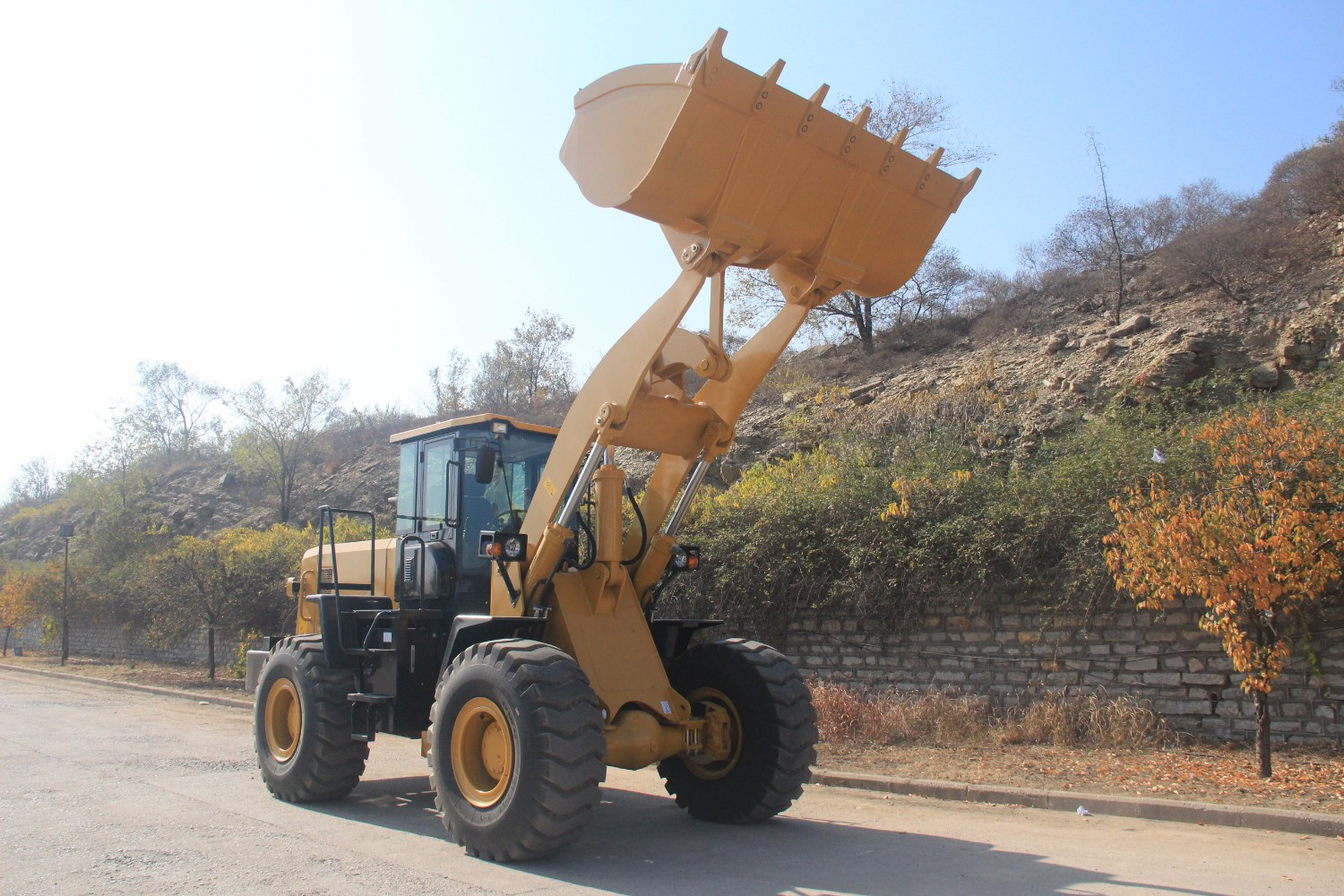

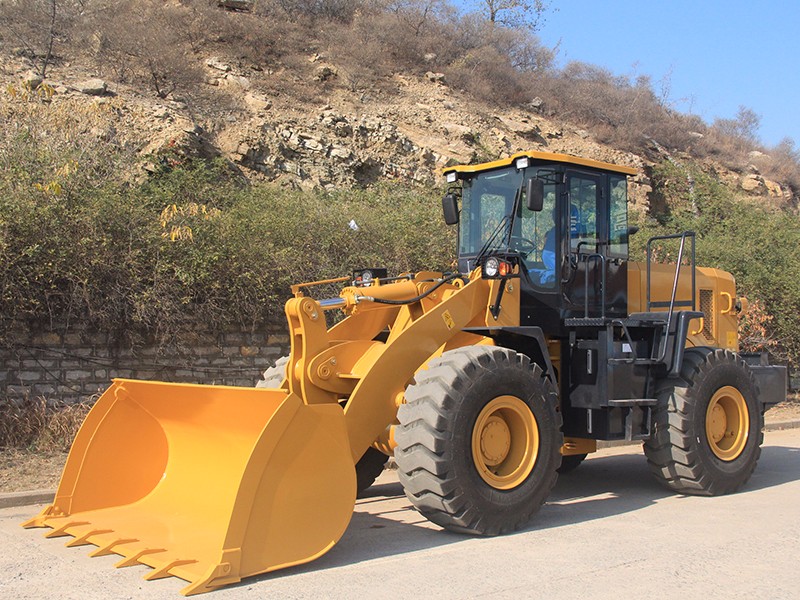

SHANMON956 loader

2

overall    weight

16500kg

3

rated    bucket capacity

3m3

4

maximum    tractive force

145KN

5

maximum    breakout force

≥175KN

6

maximum    grade ability

30℃

7

maximum    dump height

3142mm

8

maximum    dump reach

1250mm

9

overall    dimension (L×W×H)

8085×2965×3450mm

10

minimum    turning radius

6732mm

Engine

11

model

Weichai Steyr    WD10G220E23

12

type

lnline     water cooling dry cylinder     injection

13

No. of cylinder-bore/stroke

6－126×130mm

14

rated    power

162kw--2000r/min

15

maximum    torque

980N.m

16

min    fuel-consume ratio

≤212.7g/kw.h

     Transmission system

17

torque    converter

Single stage two phase four    components

18

gearbox mode

Power shift planetary structure

19

gear    shift

2 forward shift  1 reverse shift

20

maximum    speed

38km/h

Drive axles

21

main    reducing spiral

bevel gear grade 1reduction

22

decelerating    mode

 planetary reduction,grade 1

23

 wheel    base (mm)

3250mm

24

wheel    tread(mm)

2250mm

25

minimum    ground clearance

450mm

     Hydraulic system

26

system    working pressure

18MPa

27

boom    lifting time

5.1s

28

total    time

9.3s

29

fuel tank capacity

292L

30

 function of leveling automatically

yes

     Brake system

31

 service    brake

air over hydraulic disc brake on 4 wheels

32

parking    brake

Break    air brake

     Tyre

33

specification

23.5-25

34

Front    wheel air pressure

0.4Mpa

35

Rear    wheel pressure

0.35Mpa
