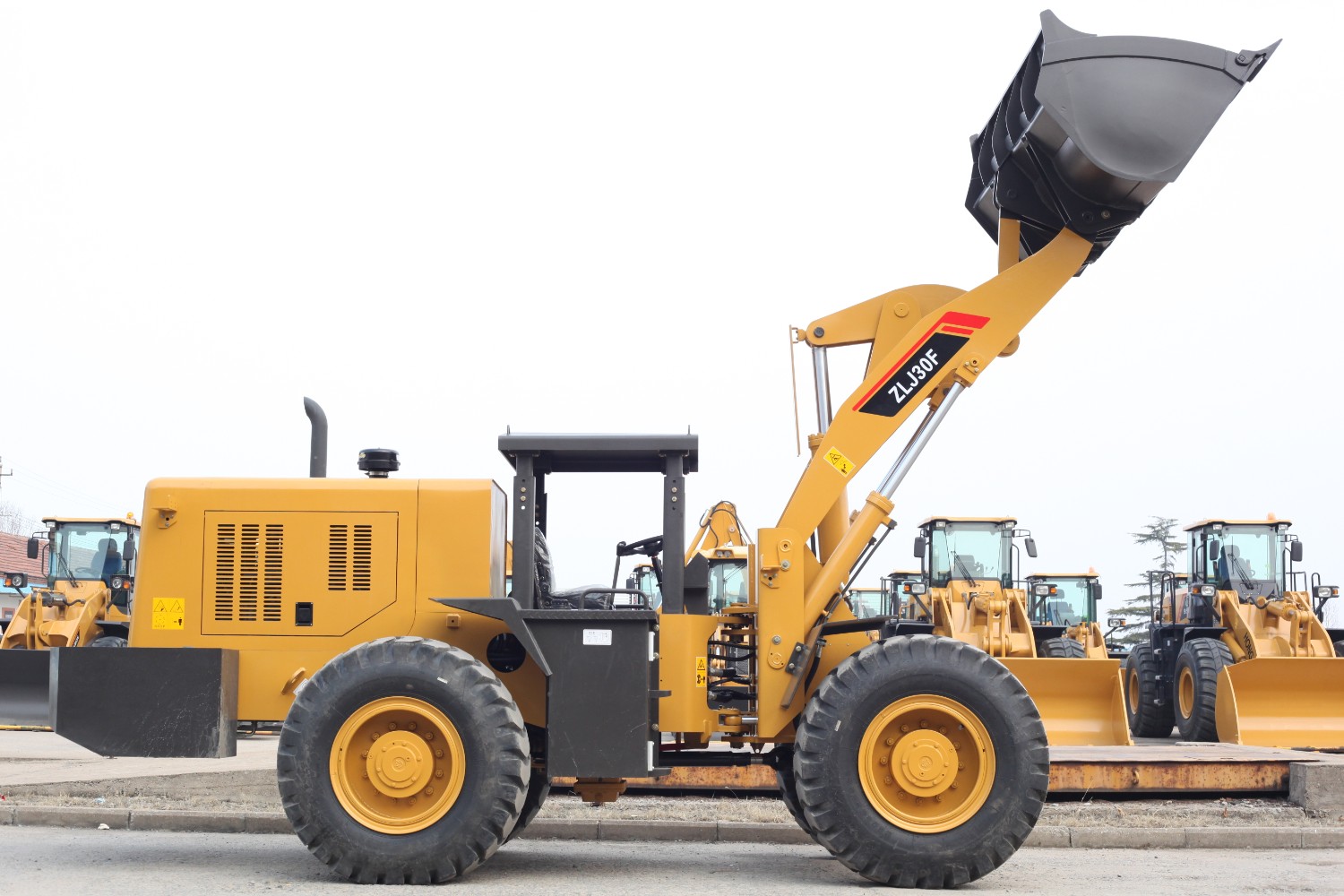

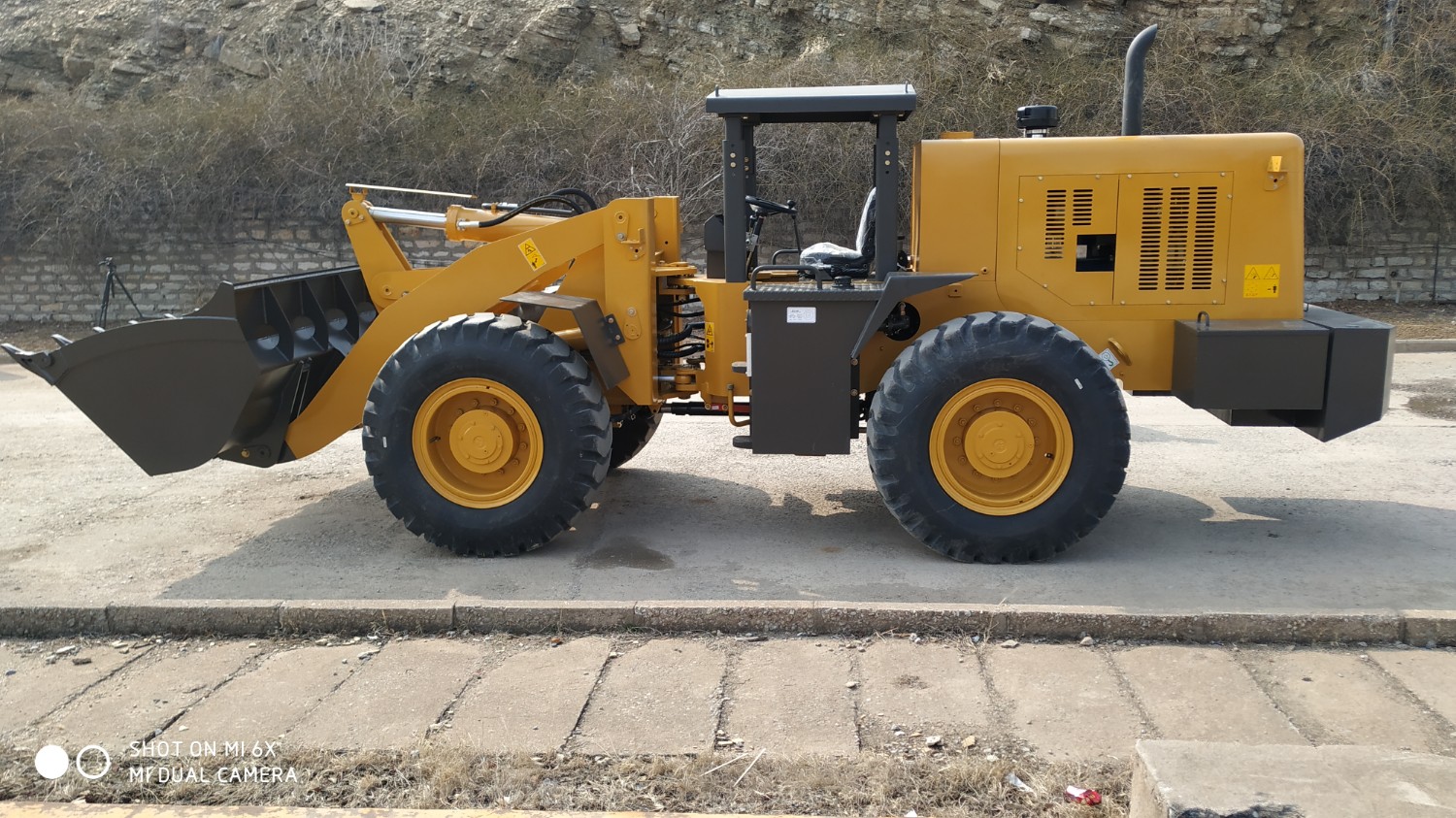

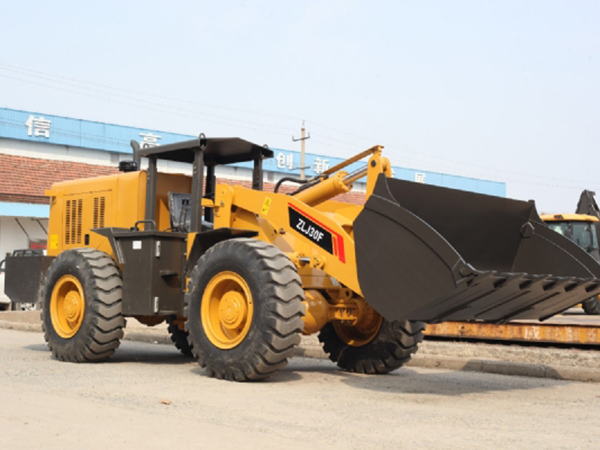

ZLJ30F Underground loader

Technical parameters of ZLJ30F loader

rated loading  3000kg

overall weight  9600kg

bucket capacity  1.7m3

maximum traction force  97KN

maximum breakout force   127KN

maximum dump height   2900mm

overall dimension (L×W×H)   7314×2350×2470mm

minimum turning radius   5097mm

Engine  model   Deutz enginesWP6G125E22

type

Vertical, in-line, water cooled, 4-stroke diesel engine

rated power   92kw—2200r/min

min. fuel-consume ratio   ≦215Kw/h

gears    4 forward  2 reverse

wheel base (mm)   2720mm

wheel tread   1800mm

system working pressure   16MPa

total time   9.15±0.5s

Tyre    type specification   17.5-25
