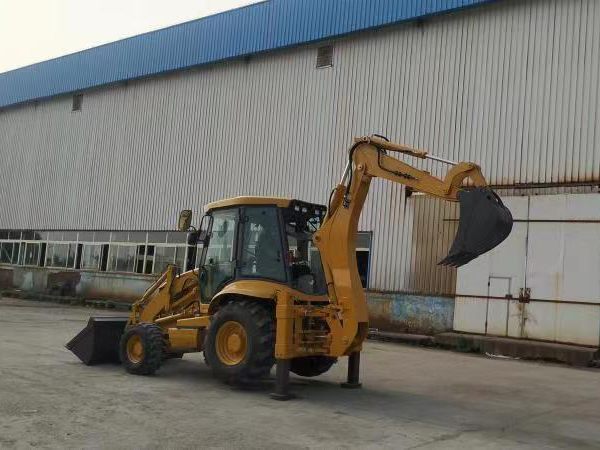

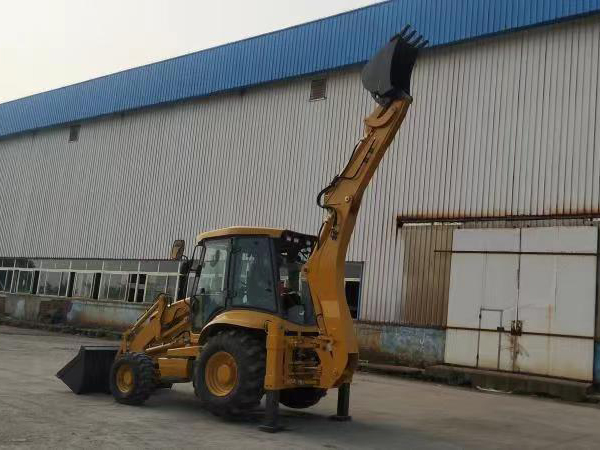

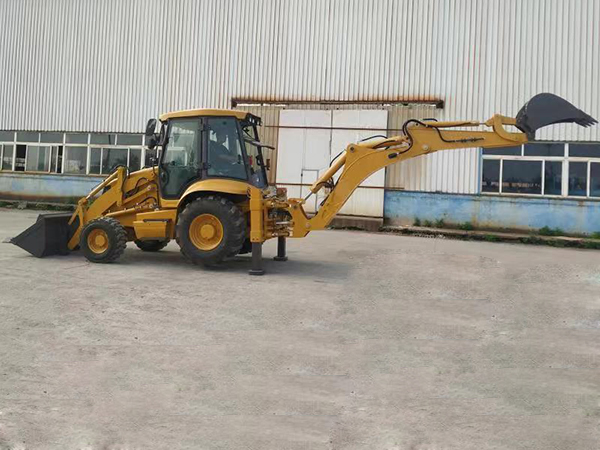

SHANMON388T backhoe loader

1

Length(with bucket on ground)

7600mm

2

Overall width（at stabilizer ）

2230mm

3

Load Bucket width

2220mm

4

Height(To the top of the cab)

3100mm

5

Height(To the top of the digging pole)

3800 mm

6

Wheel base

2100 mm

7

Back wheel Tread

1750 mm

l  Main Loading Technical Specification

1

Rated load

2500KG

2

Operating weight

7820kg

3

Rated bucket capacity

1m³

4

Max. dump clearance

2720 mm

5

Dump reach

900 mm

6

Min. turning radius

(1) Outside of bucket

5410mm

(2) Center of front wheel

4100mm

7

Max lifting capability

2500KG

8

Max. load breakout force

≥45KN

l  Main Digging Technical Specification

1

Rated digging bucket capacity

0.3m³

2

Max. digging depth

4080 mm

3

Max. digging radius

5600 mm

4

Max. dumping height

5730 mm

5

Max. digging  force

≥44KN

6

Max. Digging Height

5730 mm

Diesel engine

1

Model

Wei Chai  WP4G95E221

2

Type

Direct injection. Turbocharged. Water cooling

3

Rated output

70 (kW)

5

Total exhaust of cylinder

4.5(L)

9

Rated speed

2200(r/min)

10

Max. Torque

380(N.M)

Transmission System

1

Torque Converter

Model

CARRARO

Cooling type

Pressure oil circulating

2

Transmission case

Model

CARRARO

Type形式

Synchromesh mechanical shift

3

Axle and Tire桥

Model型号

CARRARO

Type of main reducer

spiral bevel gear, single stage

Type of final reducer

Single stage planetary

4

Gear shift position

4 F、 4 R

5

Speed （F/R）

36km/h

6

Max. drawing force

≥67KN

7

Size of tire轮

front wheel

14-17.5-14PR

rear-wheel

19.5L-24-12PR

Oil Capacity

1

Fuel(diesel)

130 L

2

Engine lubricating oil

11 L

3

Oil for converter and gear box

22 L

4

Oil for hydraulic system

110 L

5

Oil for driving axles（F/R）

7.6 L+17 L
