3007J Forklift truck

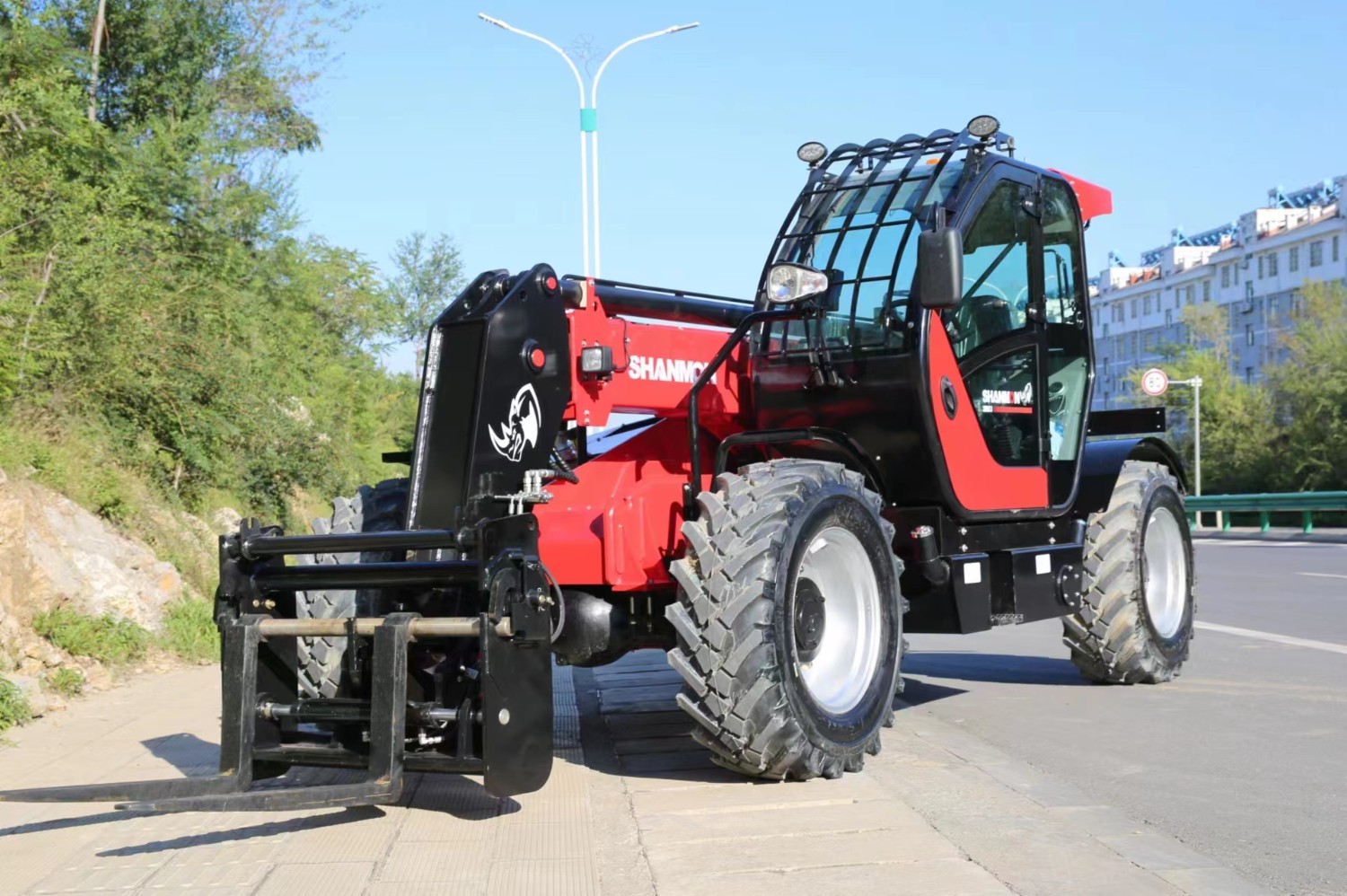

SHANMON Telescopic Handler 3007J

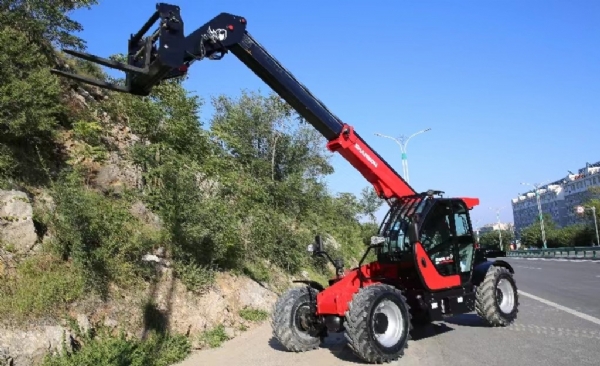

Large effective operation range,can load and unload goods directly over obstacles.

Equipped with loading telescopic function,ensuring safe and reliable operation.

Easy to change multiple attachments,enabling multifunctional operations.

Overall Dimension

1 Length(with bucket on ground) 6490±50mm

2 Overall width（Tire outer edge, hood outer

edge) 2280±20mm

3 Load Bucket width 2250±10 mm

4 Height(To the top of the cabin) 2580±20mm

5 Wheel base(MM) 3450±10mm

6 Wheel Tread(MM) 1855±10mm

Main Loading Technical Specification

1 Rated load 3000KG

2 Operating weight 8300KG

3 Rated bucket capacity 1.6 m³

4

Maximum dump height (41° discharge Angle) 6000mm

5 Dump reach 560mm

6 Turning raduis

Bucket outside rim/inside tire center 6200±50/3600±50mm

7 Actuation time

Lifting time Empty/full load 10.7/15.5 S

 Falling time 7.7 S

 Tipping time 6.7 S

Main Digging Technical Specification

Engine

1 Engine model YC4A105Z-T20

2 Cooling type 水冷Water cooling

3 Rated power 75 (kW)

4 Total exhaust of cylinder 4.8(L)

5 Rated speed 2200(r/min)

6 Max. Torque 400(N.M)

 Transmission System

1

　 Torque Converter  Model 290

Cooling type Pressure oil circulating

2 Transmission case  Model ZL15

Type

Electro-hydraulic synchronous shift

3 Axle Front Axle Model WL96Q2W

Rear Axle Model WL96Q2A

4  Gear shift position 4 F、 4 R

5 （F/R）km/h   F1: 6 km/h;   F2: 14km/h

  F3: 23km/h;   F4: 36km/h

  R1: 6km/h;  R2: 14km/h

  R3: 23km/h;  R4: 36km/h

6 Tire size                 16/70-24

 Hydraulic system

1 Working pump displacement 63ml/r

2 Working pump pressure 20Mpa

3  Steering gear model BZZ-500

 Tank CapaciSHANMON Telescopic Handler 3007J

Main performance characteristics:

The effective homework range is large and can overcome obstacles
